Product Description
The hydraulic oil press is designed to improve on the basis of introducing similar foreign products. It is easy to use, easy to operate, and has high oil yield. It is a professional equipment for extracting high oil crops such as sesame, peanut, walnut, almond, pine nut and tea seed.The machine directly presses the oil after hot frying into the barrel and presses the oil out, which has the characteristics of simple and quick process.
Main Paramater:
1.we have different model for you reference.
2.We also can customized according to your requirments.
| Model | 6YY-270 |
| Capacity(kg/batch) | 13.5 |
| Weight(kg) | 1230 |
| Working pressure | 60Mpa |
| Power(single/3 phase) | 4.0/2.2 kw |
| Package size | 750*1010*1640 |
| Oil Cake Diameter | 270 mm |
Main Features
1.The main parts of the hydraulic oil press machine are piston, hydraulic cylinders, columns, beams on activities,
base, oil pump, cylinder, electric lap and automatic temperature control devices.
2. Our oil press has the advantages of high pressure, high oil yield, compact structure and controlled heating.
3.It is easy and safe to operate the oil press, which dramatically reduces labor intensity.

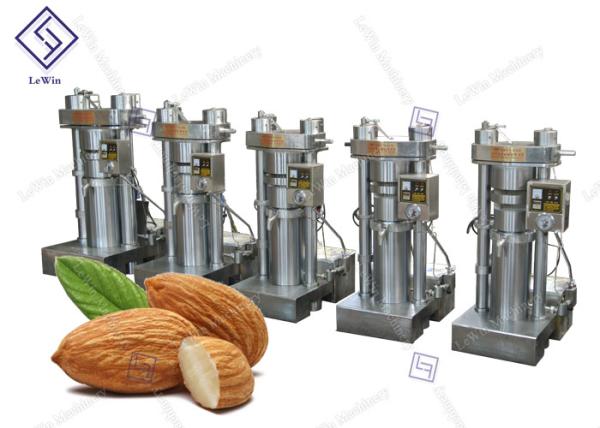

Detailed Images
This machine mainly has three major components:
1, the main part 2, hydraulic system 3, electrical system
It can be widely used in the pressing of oil plants such as sesame, soybean, peanut, flax, walnut kernel, tea seed, almond kernel.
How to operate the hydraulic oil press machine?
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.
Avantage:
1. used for both hot and cold press.
2. large capacity, high pressure.
3. Using to press many kinds of high-grade oil crops, such as walnuts,
almonds, cocoa beans, sunflowers, peanuts/groundnuts, soybean, etc.
4. It can also used for dehydration, de-oiling, off liquid for clay, activated
carbon and other chemical raw materials.
5. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.
